Optimization of the ME Rutting Depth Prediction Model Using Swarm Intelligence Algorithms

LIU Jiajia; LI Zhuoxuan; ZHANG Weiguang; CAO Jinde

doi:10.21656/1000-0887.460045

Volume 47 Issue 5

May 2026

Turn off MathJax

Article Contents

Article Navigation > Applied Mathematics and Mechanics > 2026 > 47(5): 639-654

LIU Jiajia, LI Zhuoxuan, ZHANG Weiguang, CAO Jinde. Optimization of the ME Rutting Depth Prediction Model Using Swarm Intelligence Algorithms[J]. Applied Mathematics and Mechanics, 2026, 47(5): 639-654. doi: 10.21656/1000-0887.460045

Citation:

PDF( 3492 KB)

Optimization of the ME Rutting Depth Prediction Model Using Swarm Intelligence Algorithms

doi: 10.21656/1000-0887.460045

LIU Jiajia^1
,,
LI Zhuoxuan^{1, 2
,},
ZHANG Weiguang^3
,,
CAO Jinde^{1, 2
,
,}

1.
School of Mathematics, Southeast University, Nanjing 211189, P. R. China
2.
Key Laboratory of Transport Industry of Comprehensive Transportation Theory (Nanjing Modern Multimodal Transportation Laboratory), Ministry of Transport of the People's Republic of China, Nanjing 211135, P. R. China
3.
School of Transportation, Southeast University, Nanjing 210096, P. R. China

Received Date: 2025-03-10
Rev Recd Date: 2025-04-22
Publish Date: 2026-05-01

Abstract

Abstract

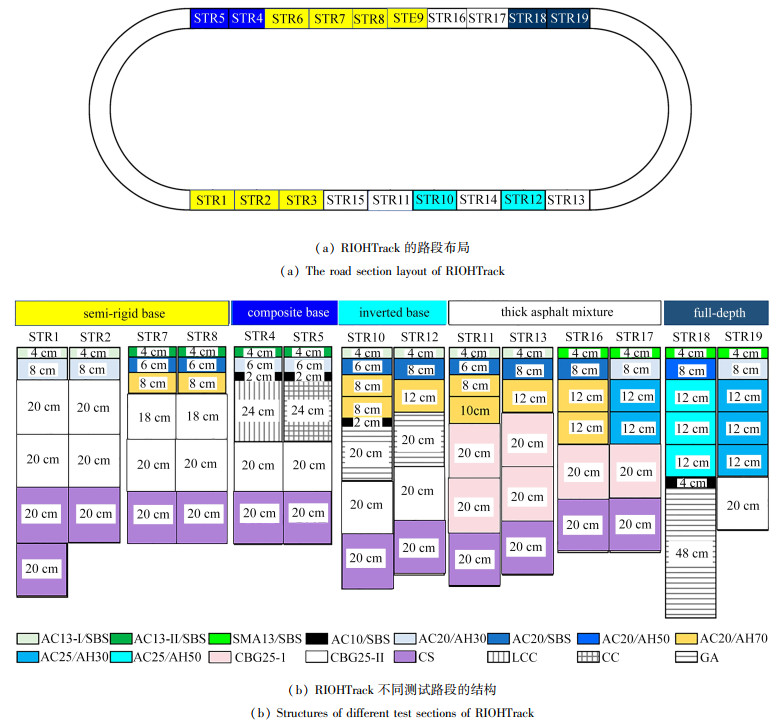

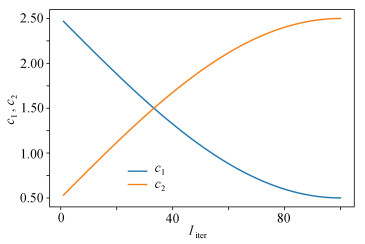

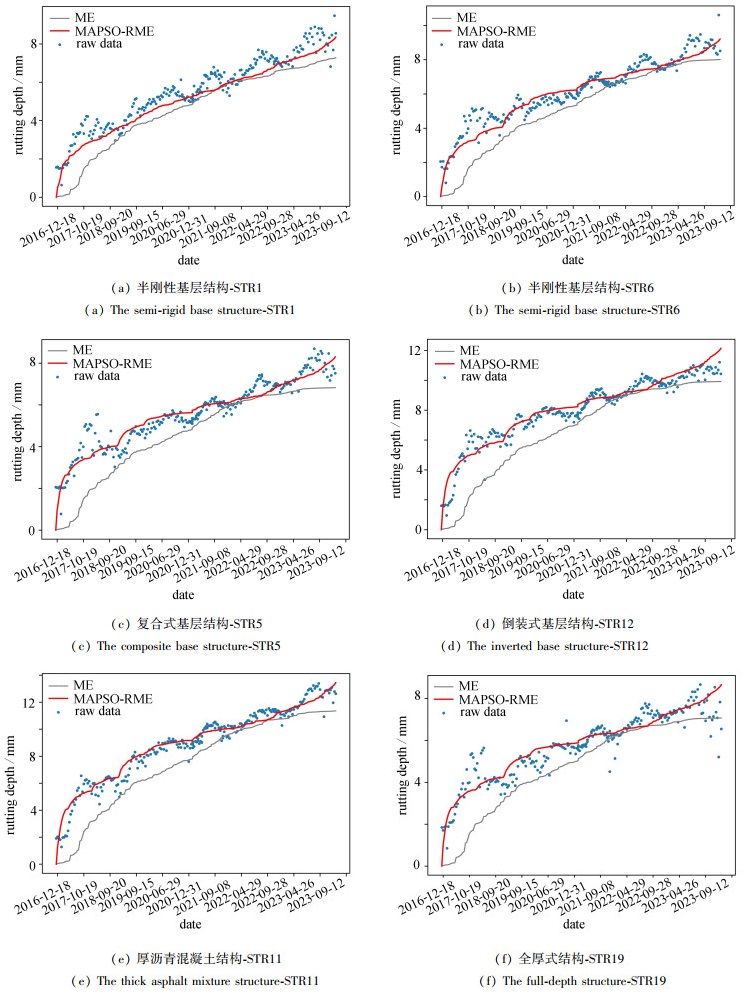

Rutting, a common disease of asphalt pavement, not only compromises the road quality and safety, but also plays a critical role in the structural design of asphalt pavement in many countries. To achieve more accurate prediction and evaluation of rutting evolution trends, it is particularly important to improve and optimize the existing rutting depth prediction model. Therefore, based on the long-term observation data of the RIOHTrack full-scale pavement acceleration loading test loop, the mechanical-empirical rutting depth prediction model in the Highway Asphalt Pavement Design Specifications (JTG D50—2017) was comprehensively adjusted and optimized. Three calibration parameters were introduced to calibrate the constant coefficients, temperatures, and cumulative load times, respectively, to improve the prediction accuracy and generalization ability of the model. Subsequently, a multi-strategy adaptive particle swarm optimization (MAPSO) algorithm incorporating a neighborhood mutation strategy and fusing exponential adaptive inertia weights with sinusoidal adaptive learning factors, was proposed. Then this algorithm was used to estimate the values of three calibration parameters to further improve the accuracy of the model. Finally, with the rutting data of 19 types of asphalt pavements in the RIOHTrack as an example, the MAPSO-RME model proposed in this article was applied for rutting depth prediction. The experimental results demonstrate that, compared with the mechanical-empirical rutting depth prediction model in the Highway Asphalt Pavement Design Specifications (JTG D50—2017), the MAPSO-RME model achieves remarkable improvement in fitting performance with a significant reduction in mean squared error (MSE) of prediction.
- asphalt pavement,
- rutting,
- parameter calibration,
- multi-strategy adaptive particle swarm optimization

(Contributed by CAO Jinde, Member of the Editorial Board of AMM)

FullText(HTML)

References(29)

References

[1]	GUNGOR O E, AL-QADI I L. All for one: centralized optimization of truck platoons to improve roadway infrastructure sustainability[J]. Transportation Research (Part C): Emerging Technologies, 2020, 114: 84-98. doi: 10.1016/j.trc.2020.02.002
[2]	CHEN X, DONG Q, ZHU H, et al. Development of distress condition index of asphalt pavements using LTPP data through structural equation modeling[J]. Transportation Research (Part C): Emerging Technologies, 2016, 68: 58-69. doi: 10.1016/j.trc.2016.03.011
[3]	ZHENG J, LÜ S, LIU C. Technical system, key scientific problems and technical frontier of long-life pavement[J]. Chinese Science Bulletin, 2020, 65(30): 3219-3229. doi: 10.1360/TB-2020-0227
[4]	CAREY W N, IRICK P E. The pavement serviceability-performance concept[J]. Highway Research Board Bulletin. 1960.
[5]	WU T, CAO J, MA T, et al. Development of rutting forecasting models for distinct asphalt pavement structures in RIOH testing track using different approaches[J]. Construction and Building Materials, 2023, 368: 130483. doi: 10.1016/j.conbuildmat.2023.130483
[6]	WOREL B, VAN DEUSEN D. Benefits of MnROAD phase-Ⅱ research: MN/RC 2015-19[R]. St Paul, MN: Minnesota Department of Transportation, 2015.
[7]	TIMM D H, PRIEST A L. Dynamic pavement response data collection and processing at the NCAT test track[R]. 2004.
[8]	Federal Highway Administration. AASHO road test[EB/OL]. (2022-03-08)[2025-04-22]. https://www.fhwa.dot.gov/infrastructure/50aasho.cfm.
[9]	ZHANG X, OTTO F, OESER M. Pavement moduli back-calculation using artificial neural network and genetic algorithms[J]. Construction and Building Materials, 2021, 287: 123026. doi: 10.1016/j.conbuildmat.2021.123026
[10]	NZ Transport Agency. Canterbury accelerated pavement testing indoor facility[EB/OL]. [2025-04-22]. https://www.nzta.govt.nz/resources/captif/.
[11]	WANG X D, ZHOU G L, LIU H Y, et al. Key points of RIOHTRACK testing road design and construction[J]. Journal of Highway and Transportation Research and Development (English Edition), 2020, 14(4): 1-16.
[12]	RADHAKRISHNAN V, DUDIPALA RR, MAITY A, et al. Evaluation of rutting potential of asphalts using resilient modulus test parameters[J]. Road Materials and Pavement Design, 2019, 20(1): 20-35. doi: 10.1080/14680629.2017.1374994
[13]	ZHANG J R, CAO J D, HUANG W, et al. Rutting prediction and analysis of influence factors based on multivariate transfer entropy and graph neural networks[J]. Neural Networks, 2023, 157: 26-38.
[14]	LI Z, SHI X, CAO J, et al. CPSO-XGBoost segmented regression model for asphalt pavement deflection basin area prediction[J]. Science China Technological Sciences, 2022, 65(7): 1470-1481. doi: 10.1007/s11431-021-1972-7
[15]	KIM W J, LE V P, LEE H J, et al. Calibration and validation of a rutting model based on shear stress to strength ratio for asphalt pavements[J]. Construction and Building Materials, 2017, 149: 327-337. doi: 10.1016/j.conbuildmat.2017.05.053
[16]	LIU G, CHEN L L, QIAN Z D, et al. Rutting influencing factors and prediction model for asphalt pavements based on the factor analysis method[J]. Journal of Southeast University (English Edition), 2021, (4): 421-428.
[17]	CHOI Y T, KIM Y R. Implementation and verification of a mechanistic permanent deformation model (shift model) to predict rut depths of asphalt pavement[J]. Road Materials and Pavement Design, 2014, 15(sup1): 195-218. doi: 10.1080/14680629.2014.927085
[18]	LING J, REN L, TIAN Y, et al. Analysis of airfield composite pavement rutting using full-scale accelerated pavement testing and finite element method[J]. Construction and Building Materials, 2021, 303: 124528. doi: 10.1016/j.conbuildmat.2021.124528
[19]	ARCHILLA A R. Use of superpave gyratory compaction data for rutting prediction[J]. Journal of Transportation Engineering, 2006, 132(9): 734-741. doi: 10.1061/(ASCE)0733-947X(2006)132:9(734)
[20]	SUH Y C, CHO N H. Development of a rutting performance model for asphalt concrete pavement based on test road and accelerated pavement test data[J]. KSCE Journal of Civil Engineering, 2014, 18(1): 165-171. doi: 10.1007/s12205-014-0394-5
[21]	刘俊卿, 刘红, 李倩. 变温条件下考虑车辆-路面相互作用的车辙分析[J]. 应用数学和力学, 2017, 38(2): 170-180. doi: 10.21656/1000-0887.370129 LIU Junqing, LIU Hong, LI Qian. Pavement rutting analysis based on vehicle-road interaction under thermal effects[J]. Applied Mathematics and Mechanics, 2017, 38(2): 170-180. (in Chinese) doi: 10.21656/1000-0887.370129
[22]	AASHTO. Mechanistic-empirical pavement design guide: a manual of practice, interim edition[S]. Washington, DC, USA: American Association of State Highway and Transportation Officials, 2008.
[23]	中华人民共和国交通运输部. 公路沥青路面设计规范[M]. 北京: 人民交通出版社, 2017. Ministry of Transport of the People's Republic of China. Specifications for Design of Highway Asphalt Pavements[M]. Beijing: China Communications Press, 2017. (in Chinese)
[24]	SHELL. Pavement Design Manual[M]. London, UK: Shell International Petroleum Company, Ltd., 1978.
[25]	WU Y, ZHOU X, WANG X, et al. Evaluation and correction method of asphalt pavement rutting performance prediction model based on RIOHTrack long-term observation data[J]. Applied Sciences, 2022, 12(13): 6805. doi: 10.3390/app12136805
[26]	WANG Y Y, ZHANG B Q, CHEN Y C. Robust airfoil optimization based on improved particle swarm optimization method[J]. Applied Mathematics and Mechanics (English Edition), 2011, 32(10): 1245-1254. doi: 10.1007/s10483-011-1497-x
[27]	KENNEDY J, EBERHART R. Particle swarm optimization[C]//Proceedings of ICNN' 95 -International Conference on Neural Networks. Perth, WA, Australia, 1995: 1942-1947.
[28]	李敏, 李卓轩, 时欣利, 等. 基于可解释性集成学习的RIOHTrack车辙预测模型及驱动因素研究[J]. 应用数学和力学, 2025, 46(1): 92-104. doi: 10.21656/1000-0887.450066 LI Min, LI Zhuoxuan, SHI Xinli, et al. Research on driving factors of the RIOHTrack rutting prediction model based on interpretable ensemble learning[J]. Applied Mathematics and Mechanics, 2025, 46(1): 92-104. (in Chinese) doi: 10.21656/1000-0887.450066
[29]	冯伟. 基于足尺环道试验的沥青路面车辙预估模型及变形机理研究[D]. 长沙: 长沙理工大学, 2021. FENG Wei. Study on rutting prediction model and deformation mechanism of asphalt pavement based on full-scale test loop[D]. Changsha: Changsha University of Science & Technology, 2021. (in Chinese)
