基于剪切效应纤维梁单元的结构非线性有限元数值模拟

李嘉钰 陈梦成 王开心

李嘉钰,陈梦成,王开心. 基于剪切效应纤维梁单元的结构非线性有限元数值模拟 [J]. 应用数学和力学,2022,43(1):34-48 doi: 10.21656/1000-0887.420032
引用本文: 李嘉钰,陈梦成,王开心. 基于剪切效应纤维梁单元的结构非线性有限元数值模拟 [J]. 应用数学和力学,2022,43(1):34-48 doi: 10.21656/1000-0887.420032
LI Jiayu, CHEN Mengcheng, WANG Kaixin. Nonlinear Numerical Simulation of Finite Elements Based on Fiber Beam Elements With Shear Effects for Structures[J]. Applied Mathematics and Mechanics, 2022, 43(1): 34-48. doi: 10.21656/1000-0887.420032
Citation: LI Jiayu, CHEN Mengcheng, WANG Kaixin. Nonlinear Numerical Simulation of Finite Elements Based on Fiber Beam Elements With Shear Effects for Structures[J]. Applied Mathematics and Mechanics, 2022, 43(1): 34-48. doi: 10.21656/1000-0887.420032

基于剪切效应纤维梁单元的结构非线性有限元数值模拟

doi: 10.21656/1000-0887.420032
基金项目: 国家自然科学基金 (51878275)
详细信息
    作者简介:

    李嘉钰(1996—),男,硕士生(E-mail:531782112@qq.com

    陈梦成(1962—),男,教授,博士生导师(通讯作者. E-mail:mcchen@ecjtu.edu.cn

  • 中图分类号: O344.3

Nonlinear Numerical Simulation of Finite Elements Based on Fiber Beam Elements With Shear Effects for Structures

  • 摘要:

    基于Euler-Bernoulli梁理论的经典纤维模型忽略了剪切变形给截面带来的影响,为了得到更加精确的梁单元模型,该文基于考虑剪切效应的纤维梁单元,根据Timoshenko梁理论,推导了该纤维梁单元的刚度矩阵,并结合弹塑性增量理论,同时考虑了几何非线性和材料非线性的双重影响,建立了压弯剪复杂应力状态下结构非线性有限元分析理论。该文最后利用MATLAB编制了相关计算程序,对钢筋混凝土和矩形钢管混凝土的典型压弯剪构件进行有限元数值模拟,得到了构件的荷载-位移非线性全过程曲线。典型算例的验证结果表明:该文建立的非线性有限元分析理论是通用、可行和正确的。

  • 图  1  纤维梁单元

    Figure  1.  The fiber beam element

    图  2  增量理论应力更新流程图

    Figure  2.  The flow chart for stress updating with the incremental theory

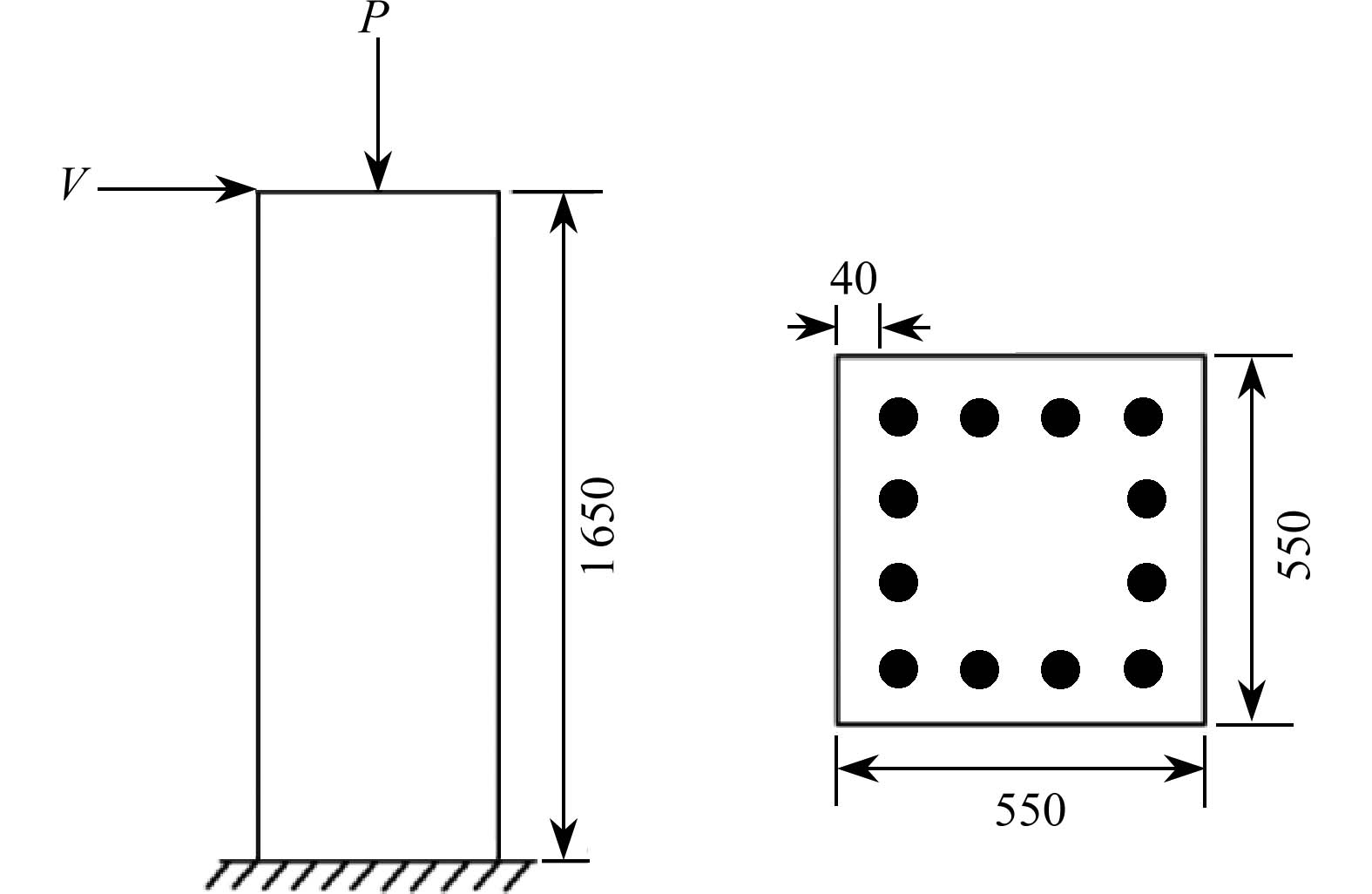

    图  3  钢筋混凝土柱(单位:mm)

    Figure  3.  The reinforced concrete column (unit: mm)

    图  4  纤维单元截面

    Figure  4.  The fiber element section

    图  5  混凝土本构模型

    Figure  5.  The constitutive model of concrete

    图  6  钢筋双折线本构模型

    Figure  6.  The constitutive model of steel reinforcement

    图  7  荷载-位移关系曲线

    Figure  7.  The load-displacement curves

    图  8  矩形钢管混凝土压弯剪试件计算模型

    Figure  8.  The calculation model for the rectangular CFST column under the compression-bending-shear loading condition

    图  9  矩形钢管混凝土试件V-R曲线

    Figure  9.  V-R curves of the rectangular CFST column

    表  1  计算参数

    Table  1.   Calculation parameters

    parametervalue
    compressive strength of concrete $ f_{\rm{c}}^\prime = 32.1\;{\text{MPa}} $
    Poisson’s ratio of concrete $ {\nu _{\rm{c}}} = 0.2 $
    yield strength of rebar $ {f_{\rm{y}}} = 510\;{\text{MPa}} $
    sectional shear coefficient $ {\kappa _y} = {\kappa _z} = 6/5 $
    elastic modulus of concrete $ {E_{\rm{c}}} = 2.64 \times {10^4}\;{\text{MPa}} $
    Poisson’s ratio of rebar $ {\nu _{\rm{s}}} = 0.3 $
    elastic modulus of rebar $ {E_{\rm{s}}} = 2 \times {10^5}\;{\text{MPa}} $
    peak compressive strain of the member $ \varepsilon {\text{ = }}0.005\;2 $
    shear modulus of concrete $ {G_{\rm{c}}} = 1.1 \times {10^4}\;{\text{MPa}} $
    moment of inertia $ I = 7.63 \times {10^{ - 3}}\;{{\text{m}}^4} $
    shear modulus of rebar $ {G_{\rm{s}}} = 7.7 \times {10^4}\;{\text{MPa}} $
    equivalent weight of the element $ P = 3\;539.25\;{\text{kN}} $
    下载: 导出CSV

    表  2  数值模拟结果

    Table  2.   Numerical simulation results

    displacement u/mmref. [15] FR/kNnumerical simulation FN/kNerror δ/%
    2167.16156.026.66
    4313.14294.855.84
    6417.97409.751.97
    8490.91487.480.70
    10540.35537.670.50
    12568.83558.611.80
    14577.99570.971.22
    16573.22555.433.10
    18562.80534.984.94
    20552.04515.576.61
    22538.23497.127.64
    24517.62479.597.35
    下载: 导出CSV
  • [1] 马春来. 考虑剪切位移和多因素耦合影响下的空间梁非线性分析模型研究[D]. 硕士学位论文. 杭州: 浙江大学, 2008.

    MA Chunlai. Nonlinear analysis of space beam based on shear displacement and multi-factors coupling influence[D]. Master Thesis. Hangzhou: Zhejiang University, 2008. (in Chinese)
    [2] TIMOSHENKO S P. On the correction for shear of the differential equation for transverse vibrations of prismatic bars[J]. Philosophical Magazine, 1921, 41(245): 744-746.
    [3] MARI A, SCORDELIS A. Nonlinear geometric material and time dependent analysis of three dimensional reinforced and prestressed concrete frames[R]. SESM Report. Department of Civil Engineering, University of California, 1984.
    [4] 胡郑州, 吴明儿. 考虑剪切效应三维纤维梁单元的几何非线性增量有限元分析[J]. 工程力学, 2014, 31(8): 134-143. (HU Zhengzhou, WU Ming’er. Geometrically nonlinear incremental finite element analysis of 3D fiber beam element considering shear effect[J]. Engineering Mechanics, 2014, 31(8): 134-143.(in Chinese) doi: 10.6052/j.issn.1000-4750.2013.03.0170
    [5] 顾观东. 基于变形位移理论的空间梁柱非线性有限元分析模型研究[D]. 硕士学位论文. 杭州: 浙江大学, 2013.

    GU Guandong. Study on nonlinear spatial beam element model based on theory of deformation and displacement[D]. Master Thesis. Hangzhou: Zhejiang University, 2013.(in Chinese)
    [6] 郑欣怡. 考虑粘结滑移效应的新型钢筋混凝土纤维梁柱单元模型[D]. 硕士学位论文. 哈尔滨: 哈尔滨工业大学, 2019.

    ZHENG Xinyi. A new reinforced concrete fiber beam-column element model considering bond-slip effect[D]. Master Thesis. Harbin: Harbin Institute of Technology, 2019.(in Chinese)
    [7] THAI H T, KIM S E. Second-order inelastic analysis of cable-stayed bridges[J]. Finite Elements in Analysis & Design, 2012, 53(7): 48-55.
    [8] 张传超, 郑山锁, 李磊, 等. 基于柔度法的纤维梁柱单元及其参数分析[J]. 工业建筑, 2010, 40(12): 90-94. (ZHANG Chuanchao, ZHENG Shansuo, LI Lei, et al. Flexibility-based fiber beam-column element and its parametric analysis[J]. Industrial Construction, 2010, 40(12): 90-94.(in Chinese)
    [9] 马银. 基于纤维模型的型钢混凝土梁柱单元理论[D]. 硕士学位论文. 西安: 西安建筑科技大学, 2010.

    MA Yin. Element theory of steel reinforced concrete beam and column based on fiber model[D]. Master Thesis. Xi’an: Xi’an University of Architecture and Technology, 2010. (in Chinese)
    [10] 蔺鹏臻, 王富平, 柳兴成. 基于纤维梁模型的钢筋混凝土箱梁非线性分析[J]. 铁道建筑, 2019, 59(5): 22-26, 55. (LIN Pengzhen, WANG Fupin, LIU Xingcheng. Nonlinear analysis of RC box girder based on fiber beam model[J]. Railway Construction, 2019, 59(5): 22-26, 55.(in Chinese) doi: 10.3969/j.issn.1003-1995.2019.05.05
    [11] KAGERMANOV A, CERESA P. 3D fiber-based frame element with multiaxial stress interaction for RC structures[J]. Advances in Civil Engineering, 2018, 2018: 8596970.
    [12] PARK K, KIM H, DAE J, et al. Generalized finite element formulation of fiber beam elements for distributed plasticity in multiple regions[J]. Computer-Aided Civil and Infrastructure Engineering, 2019, 34(2): 146-163. doi: 10.1111/mice.12389
    [13] GENDY S S F M, AYOUB A. Explicit fiber beam-column elements for impact analysis of structures[J]. Journal of Structural Engineering, 2018, 144(7): 04018068.
    [14] BAZOUNE A, KHULIEF Y A, STEPHEN N G. Shape functions of three-dimensional Timoshenko beam element[J]. Journal of Sound and Vibration, 2003, 259(2): 473-480. doi: 10.1006/jsvi.2002.5122
    [15] AL-AUKAILY A, SCOTT M H. Sensitivity analysis for displacement-controlled finite-element analyses[J]. Journal of Structural Engineering, 2018, 144(3): 04017222. doi: 10.1061/(ASCE)ST.1943-541X.0001983
    [16] 杜修力, 曹惠, 金浏. 力-变位关系全过程模拟的有限元位移控制新方法[J]. 工程力学, 2012, 29(1): 1-6. (DU Xiuli, CAO Hui, JIN Liu. New finite element displacement control method for force-displacement relationship simulation in the whole process[J]. Engineering Mechanics, 2012, 29(1): 1-6.(in Chinese)
    [17] SCOTT B D, PARK R, PRIESTLEY M J N. Stress-strain behavior of concrete confined by overlapping hoops at low and high strain rates[J]. ACI Journal, 1982, 79(1): 13-27.
    [18] KENT D C, PARK R. Flexural members with confined concrete[J]. Journal of the Structural Division, 1971, 97(7): 1969-1990.
    [19] 王亚晋, 范重, 侯超, 等. 矩形钢管混凝土构件双向压弯剪受力性能研究[J]. 建筑结构学报, 2019, 40(S1): 257-263. (WANG Yajin, FAN Zhong, HOU Chao, et al. Research on the behavior of rectangular CFST members under bidirectional compression and bend sears[J]. Journal of Building Structures, 2019, 40(S1): 257-263.(in Chinese)
    [20] 韩林海. 钢管混凝土结构-理论与实践[M]. 北京: 科学出版社, 2004.

    HAN Linhai. Concrete-Filled Steel Tubular Structure-Theory and Practice[M]. Beijing: Science Press, 2004. (in Chinese)
